Miniaturisation changes every subsystem
A miniature transmitter is not simply a full-size design made smaller. Reducing volume changes the antenna that can be used, the available battery capacity, the spacing between noisy and sensitive circuits, the thermal environment and the mechanical options for microphones and connectors.
The engineering task is therefore to allocate the limited physical and electrical budget intelligently rather than optimise one headline specification at the expense of everything else.
PCB layout and functional density

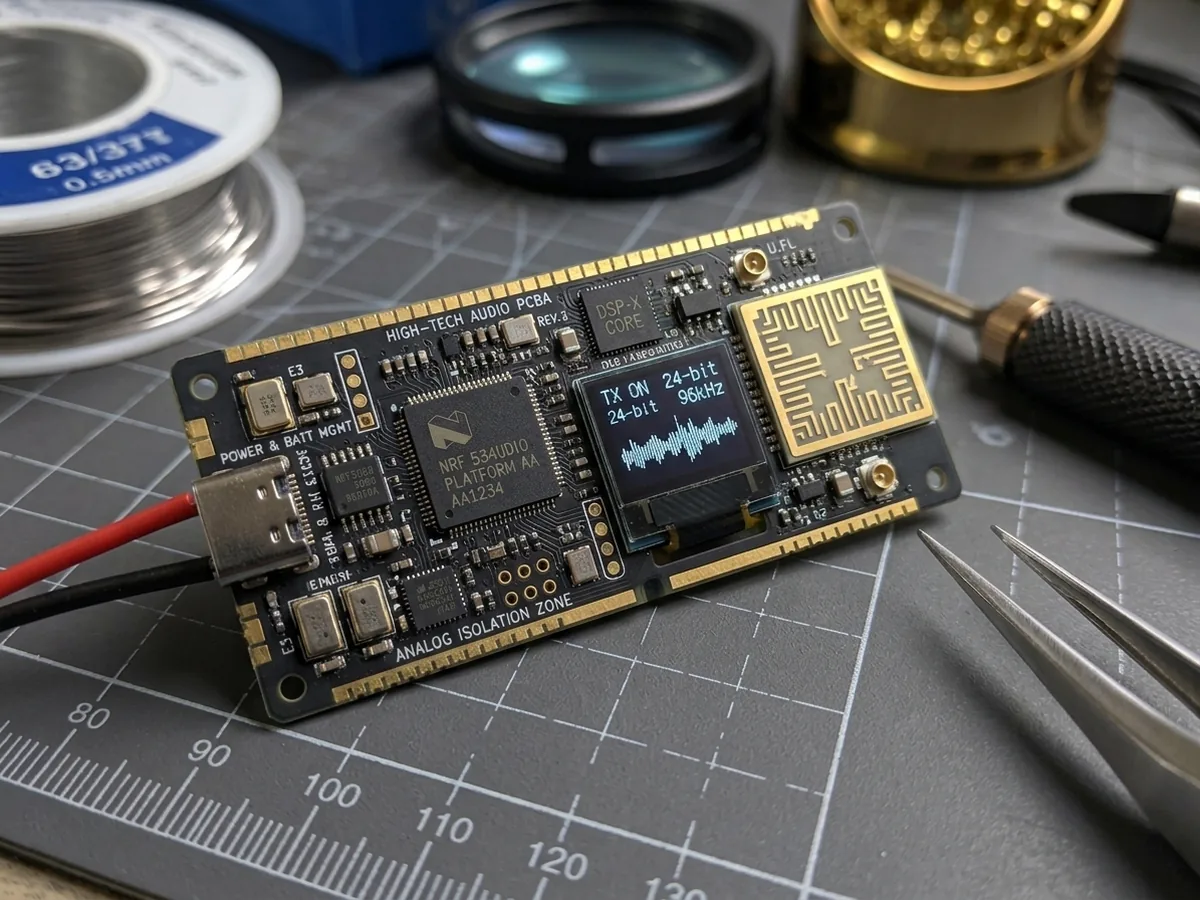

Compact RF/audio boards place analogue audio circuitry, digital processing, clocks, power conversion and radio functions close together. Layout decisions influence noise, signal integrity and RF behaviour even when the schematic itself is unchanged.
Good compact design uses component placement and grounding to manage interactions between these sections while preserving practical assembly and test access.
The microphone and acoustic path
Physical size affects more than electronics. The microphone still needs an acoustic path to the environment, and the enclosure can introduce attenuation, resonance or mechanical noise.
That means microphone selection and mechanical placement are part of the product design. A high-performance microphone cannot compensate for an unsuitable acoustic opening or poor integration.
Battery capacity versus operating time
Battery energy generally falls as the available volume decreases. At the same time digital processing and RF transmission require energy. Endurance therefore depends heavily on average duty cycle and the efficiency of the complete power architecture.
Current profiling across real operating states is more informative than quoting the lowest standby figure. It shows whether the intended battery and mechanical envelope can support the required use period.
Small antennas and the installation environment
Electrically small antennas are more sensitive to nearby materials and often operate with less efficiency than larger antennas. The battery, PCB ground structure, enclosure and host equipment can all become part of the antenna environment.
This is why miniature RF products benefit from antenna measurement in representative installation conditions. A physically small antenna can be useful, but only if the rest of the system is designed around its limitations.
Digital processing can help — but it has a cost
Digital audio and radio architectures can provide coding, encryption and flexible signal processing. Those capabilities add processing load, memory and clocking requirements, which in turn affect power consumption and PCB complexity.
The most appropriate architecture is therefore the one that meets the professional requirement within the available power and space rather than the one with the longest feature list.
Verifying a miniature transmitter
Compact products should be tested in their assembled configuration. Spectrum behaviour, antenna matching, receiver operation, current consumption and audio functionality can all change once the board is installed close to batteries, covers and other materials.
The resulting measurements guide the final balance between size, endurance and RF performance and provide evidence that the product remains functional after miniaturisation.
